acv cc-m225 lautsprecher coaxial dls performa
5.25 inch Performance Coaxial 50 WRMS - inline X-Over

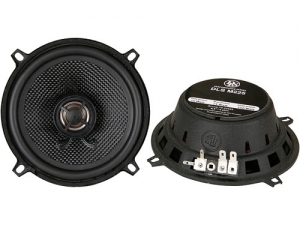

Performance series M225 is a 13 cm (5,25 ) 2- way coaxial
speaker with a 16 mm tweeter.
Small installation depth, only 43 mm
Fibre glass cone and rubber surround
Crossover has a 6/12 dB slope.
Grilles are included.
Specifications
Woofer size 13 cm (5,25 )
Tweeter 16 mm (0,63 ) mylar
Power handling capacity 50 W RMS / 75 W max. 150 W peak
Impedance 4 ohm
Frequency range 75 - 18.000 Hz
Sensitivity 85 dB (1W/1m)
Crossover Cable filter with 6/12 dB slope (LP/HP)
Outer diameter of woofer 130 mm (5,12 )
Magnet size 80 mm (3,15 )
Mounting depth 43 mm ( 1,7 )
Mounting hole 120 mm (4,72 )
EAN Bar code 7331644822103
Performance series M225 is a 13 cm (5,25 ) 2- way coaxial
speaker with a 16 mm tweeter.
Small installation depth, only 43 mm
Fibre glass cone and rubber surround
Crossover has a 6/12 dB slope.
Grilles are included.
Specifications
Woofer size 13 cm (5,25 )
Tweeter 16 mm (0,63 ) mylar
Power handling capacity 50 W RMS / 75 W max. 150 W peak
Impedance 4 ohm
Frequency range 75 - 18.000 Hz
Sensitivity 85 dB (1W/1m)
Crossover Cable filter with 6/12 dB slope (LP/HP)
Outer diameter of woofer 130 mm (5,12 )
Magnet size 80 mm (3,15 )
Mounting depth 43 mm ( 1,7 )
Mounting hole 120 mm (4,72 )
EAN Bar code 7331644822103
Diesen Artikel haben wir am Freitag, 21. Juni 2024 in unseren Katalog aufgenommen.
