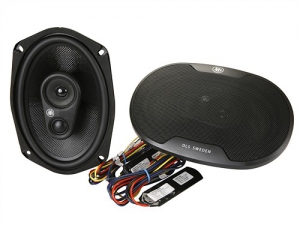

6x9 Performance Coaxial 100 WRMS - inline X-Over
Performance series M369 is a 6 x 9 3-way triaxial with 25
mm silk dome mid driver and a 20 mm mylar tweeter.



The bass driver has a cone of nonpress paper and rubber
edge. Together with a powerful magnet system it guarantees
a good bass control.

Grilles are included.



Specifications



Woofer size 6 x 9 (165 x 236 mm

Tweeter 20 mm (0,8 ) mylar tweeter, 25 mm (1 ) midrange

Power handling capacity 100 W RMS / 150 W max / 250 W peak
power

Impedance 4 ohm

Frequency range 45 - 20.000 Hz

Sensitivity 88 dB (1W/1m)

Crossover Internal filter

Outer diameter of woofer 165 x 236 mm

Magnet size 100 mm (3,94 )

Cone material Nonpress paper

Mounting depth 86 mm ( 3,38 )

Mounting hole 155 x 221 mm (6,1 x 8,7 )

EAN Bar code 7331644822905
