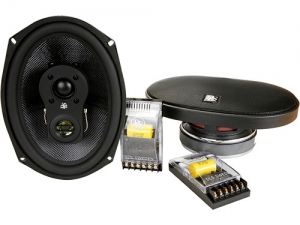

7x10 Performance 3 Way 120 WRMS- inline X-Over
Performance series M3710 is a 7 x 10 3-way coaxial with
25 mm silk dome mid driver and a 20 mm mylar tweeter.

The bass driver has a cone of woven glass fibre and rubber
edge. Together with a powerful magnet system it guarantees
a good bass control. Grilles are included.

Small filter boxes with a 6 dB slope crossover.

Specifications

Woofer size 7 x 10 (180 x 250 mm

Tweeter 20 mm (0,8 ) tweeter, 25 mm (1 ) midrange

Power handling capacity 120 W RMS / 200 W max / 300 W peak
power

Impedance 4 ohm

Frequency range 30 - 20.000 Hz

Sensitivity 90 dB (1W/1m)

Crossover External woofer filter with 6 dB slope

Outer diameter of woofer 180 x 250 mm

Magnet size 138 mm (5,4 )

Cone material Woven glass fibre with rubber surround

Mounting depth 95 mm ( 3,75 )

Mounting hole 170 x 240 mm (6,7 x 9,45 )

Size of filter box Filter box L x W x H 120 x 65 x 32 mm

EAN Bar code 7331644821809

DLS Nr. M3710i
