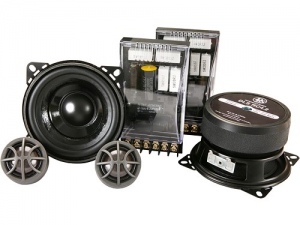

Reference 4 inch 2-way Component System with Separate
X-Over 60 WRMS
Reference series RC4.2 is a 10 cm (4 ) 2-way component kit
with a separate 25 mm tweeter with copper rings for
improved treble sound.

Install the tweeter on the dashboard or recessed in the
door, all mounting parts are included.

The bass driver has a coated paper cone with rubber edge
and a 80 mm powerful magnet that guarantees a good bass
control and a fantastic sound. Grilles are included.

Filter boxes with only the best components
Specifications

Woofer size 10 cm (4 )

Tweeter RC25, 25 mm (1,25 ) silk dome tweeter with copper
rings

Power handling capacity 60 W RMS / 100 W max / 200 W peak
power

Impedance 4 ohm

Frequency range 65 - 22 000 Hz

Sensitivity 86 dB (1W/1m)

Crossover Filter box with 12 dB slope (HP + LP)

Crossover point (Hz) 4500 Hz

Size of filter box 120 x 66 x 33 mm ( 4,72 x 2,6 x 1,3 )

Outer diameter of woofer 102 mm (4 )

Cone material Coated paper cone

Magnet size 80 mm (3,15 )

Mounting depth 57 mm ( 2,25 )

Mounting hole 97 mm (3,82 )

T/S parameters

single V/C

Fs 80 Hz Re 3,3 Ohm Qms 4,8

Vas 1,4 liter Vas 0,05 Cuft Qes 0,68

Qts 0,6 Sd cm BL 5,4

EAN Bar code 7331644821403
