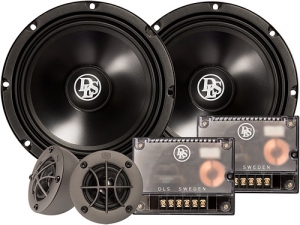

Reference 6.5inch 2-way Component System with separate
X-Over 100 WRMS

RZ6.2Q

DLS knows that the small details eventually make a
difference, therefore we always keep that in mind when we
design and develop new products.
One perfect example of this is the DLS original new
antivibration PENTA basket.
When the magnet motor of a speaker can work without being
affected by external vibrations, the sound becomes tighter
and clearer.
In the DLS PENTA basket, the strong steel basket is
reinforced by precision pressed structures running on the
sides of each pillar, creating a very rigid assembly plane
for the magnet.
To further cancel out resonant vibrations the asymmetrical
shape with five - rather than the usual four - pillars,
also play an important role to avoid mechanical structure
standing waves.

Reference series RZ6.2Q implement DLS original design,
anti-vibration PENTA basket with five reinforced pillars
and DLS imprinted logos.

The large magnet aluminum cone woofer nicely blends with a
50mm wide band tweeter through a specially tuned high-grade
crossover.

It enables special installations with an improved
soundstage combined with bass power, clarity and warmth.

Specifications:

Woofer size 16,5 cm (6,5 ) Cone material Black anodized
aluminium cone
Tweeter RC50 50 mm wide band tweeter
Power handling capacity 100 W RMS / 150 W max / 300 W peak
power
Impedance 4 ohm
Frequency range 50 22 000 Hz
Sensitivity 85 dB (1W/1m)
Crossover Filter box with 6/12 dB slope (LP/HP)
Crossover point (Hz) 1500 Hz
Size of filter box 145 x 85 x 45 mm ( 5,71 x 3,35 x 1,77 )
Outer diameter of woofer 165 mm (6,5 )
Cone material Black anodized aluminium cone
Magnet size 110 mm (4,33 )
Mounting depth 75 mm (3 )
Mounting hole 145 mm (5,7 )


T/S parameters
single V/C
Fs 64,2 Hz Re 3,4 Ohm Qms 7,29
Vas 6,27 liter Vas 0,22 Cuft Qes 0,88
Qts 0,79 Sd 143 cm BL 6,59
