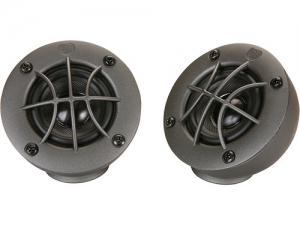

50 mm Broadband tweeter 50WRMS
Reference series tweeter RC50 is a 50 mm wide band tweeter
with chamber.

Install on the dashboard or A-pillar

directed on axis.

Can be installed without chamber recessed in a panel, but
the chamber gives a better sound quality.

To be used in active mode.

When connected in active mode use

High Pass X-over set between 800 -

1500 Hz /18 dB slope, and Low Pass

x-over set to 18 kHz / 6 dB slope

Connect with a good amplifier like DLS

CC series or better.

This is a new product available from February 2016

Specifications



Impedance 4 ohm

Power handling capacity 50 W RMS

Max power handling capacity 80 W

Frequency range 500 - 22.000 Hz

Rec. frequency range 1500 kHz - 22 kHz

Fs - Resonant frequency 155 Hz

Sensitivity 83,2 dB (1W/1m)

Magnet size 32 mm (1,26 )

Outer diameter 84 mm (3,3 )

Mounting depth 45 mm / 37 mm ( 1,77 / 1,46 )

Mounting hole 65 mm (2,56 )
