Scandinavia 75mm Polypropylene Mid 50- 200 Watts

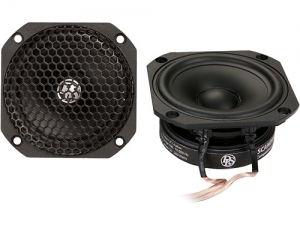

Scandinavia 75

DLS Scandinavia 75 is a midrange specially designed for
competition use. The extreme audio performance makes it a
winner in every Pro installation.

FEATURES AND BENEFITS:

Extreme audio performance, transparent and clear sound
Great imaging and staging capabilities
High resolution and dynamics, rich of micro details
Extremely wide frequency range
Install in sealed box of minimum 1 litres and maximum 4
litres.

Rec.HP X-over frequency: above 180 Hz HP and LP below 6000
Hz

Specifications

Description / type 3 midrange speaker with PP cone
Impedance 4 ohm
Recommended amplifier 50 - 200 Watt

Frequency range 100 Hz - 10 kHz (in axis) +- 3 dB
Fs - Resonant frequency 100 Hz
Sensitivity 85,2 dB

Outer diameter 84 x 84 mm / 3,31 x 3,31
Mounting hole 76 mm / 3

T/S parameters
single V/C

Fs 100 Hz Re 3,5 Ohm Qms 4,95
Vas 1,59 liter Vas 0,056 Cuft Qes 0,76
Qts 0,66 Sd cm BL 3,06
Mounting depth 38 mm / 1,5

EAN Bar code 7331644824602
