acv cs-rcw10 subwoofer dls reference 25cm/300
Reference 10 Subwoofer Aluminium Cone 800W Max Power
(300WRMS)

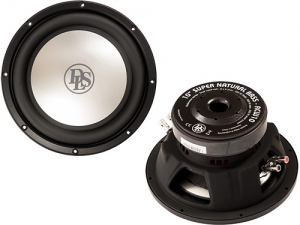

RCW10 is a brand new 10 subwoofer in Reference series
with the latest technology giving the sub fantastic sound
qualitys.
Aluminum one-cone body without dust cap.
Litz wires integrated in the spider for better reliability.
Fat rubber suspension.
Dual 4 ohm voice coils, Use single voice coil connection or
connect in parallel to 2 ohm for maximum output power from
your mono amplifier.
Specifications
Woofer size 10 (25 cm)
Impedance 2 x 4 ohm
Power handling capacity 300 W RMS
Max power handling capacity 600 W
Peak power 800 W
Frequency range 25 - 1000 Hz
Magnet size 160 mm (6,3 )
Sensitivity 84,4 dB (1W/1m)
Outer diameter of woofer 266 mm (10,5 )
Mounting depth 133 mm (5,23 )
Mounting hole 235 mm ( 9,25 )
X-max +- 9 mm (0,35 )
Weight 5,3 kg (11,7 lbs)
T/S parameters
single V/C
Fs 28,4 Hz Re 2x3,2 Ohm Qms 3,33
Vas 36,9 liter Vas 1,3 Cuft Qes 0,81
Qts 0,65 Sd 353 cm BL 10,2
T/S-Parameters
(in parallel)
Fs 28,2 Hz Re 2x3,2 Ohm Qms 3,43
Vas 37,6 liter Vas 1,32 Cuft Qes 0,42
Qts 0,37 Sd 353 cm BL 9,95
EAN Bar code 7331644823704
(300WRMS)
RCW10 is a brand new 10 subwoofer in Reference series
with the latest technology giving the sub fantastic sound
qualitys.
Aluminum one-cone body without dust cap.
Litz wires integrated in the spider for better reliability.
Fat rubber suspension.
Dual 4 ohm voice coils, Use single voice coil connection or
connect in parallel to 2 ohm for maximum output power from
your mono amplifier.
Specifications
Woofer size 10 (25 cm)
Impedance 2 x 4 ohm
Power handling capacity 300 W RMS
Max power handling capacity 600 W
Peak power 800 W
Frequency range 25 - 1000 Hz
Magnet size 160 mm (6,3 )
Sensitivity 84,4 dB (1W/1m)
Outer diameter of woofer 266 mm (10,5 )
Mounting depth 133 mm (5,23 )
Mounting hole 235 mm ( 9,25 )
X-max +- 9 mm (0,35 )
Weight 5,3 kg (11,7 lbs)
T/S parameters
single V/C
Fs 28,4 Hz Re 2x3,2 Ohm Qms 3,33
Vas 36,9 liter Vas 1,3 Cuft Qes 0,81
Qts 0,65 Sd 353 cm BL 10,2
T/S-Parameters
(in parallel)
Fs 28,2 Hz Re 2x3,2 Ohm Qms 3,43
Vas 37,6 liter Vas 1,32 Cuft Qes 0,42
Qts 0,37 Sd 353 cm BL 9,95
EAN Bar code 7331644823704
