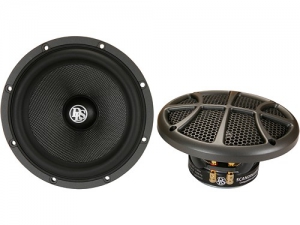

Scandinavia 6.5 Woofer with Fibre Glass Cone 50 - 200 WRMS

Scandinavia 165

DLS Scandinavia 165 is a bass driver specially designed for
competition use. The speaker data makes it perfect as mid
bass in 2-way configurations.
The extreme audio performance makes it a winner in every
Pro installation.
Come in pairs.
Grilles are included.
Fibre glass cone body.

FEATURES AND BENEFITS:

Extreme audio performance, transparent and clear sound
Great imaging and staging capabilities
High resolution and dynamics
Extremely low distortion

Rec. X-over frequency high pass: 50-60 Hz
Rec X-over frequency low pass: 3-4 kHz
Rec. speaker cable: DLS HQS 2 x 2,5 mm.

Optimized for door panel mount but can also be used in
sealed boxes of 9 litre (0,31 cuft)

Specifications

Description / type 6,5 mid bass driver

Outer diameter 165 mm / 6,5
Impedance 4 ohm
Recommended amplifier 50 - 200 Watt
Frequency range 50-4500 Hz
Fs - Resonant frequency 61 Hz
Sensitivity 91,9 dB


Mounting hole 140 mm / 5,51
Mounting depth 65 mm / 2,56


T/S parameters
single V/C

Fs 61 Hz Hz Re 3,3 Ohm Qms 15,6
Vas 10,2 liter Vas 0,36 Cuft Qes 0,55
Qts 0,54 Sd 131 cm BL 6,1

EAN Bar code 73316440824701
