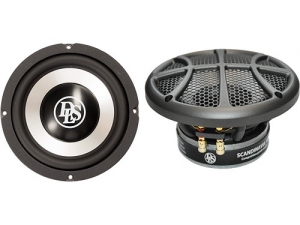

Scandinavia 6.5 Woofer with Aluminium Cone 200 WRMS

Scandinavia 165Wi

DLS Scandinavia 165W is a bass / mid driver specially
designed for competition use in active or passive 3-way
systems.
The extreme audio performance makes it a winner in every
Pro installation.
Come in pairs.
Grilles are included.

FEATURES AND BENEFITS:

Extreme audio performance, transparent and clear sound
Great attack and delay
High resolution and dynamics
Linear spider design
Extremely low distortion
Aluminium cone body
Passive filters can be bought separately

Rec. X-over frequency highpass: 50-60 Hz.
Rec- x-over frequency lowpass 180-300Hz
Rec. speaker cable: DLS HQS 2 x 2,5 mm.
Rec. box: sealed 7-9 litres.

Specifications

Impedance 4 ohm
Description / type 6,5 woofer
Outer diameter 165 mm / 6,5
Recommended amplifier 50 - 200 Watt

Frequency range 30 Hz - 500 Hz
Fs - Resonant frequency 52,4 Hz
Sensitivity 84,3 dB

Mounting hole 140 mm / 5,51
Mounting depth 68 mm / 2,67

EAN Bar code 7331644824800

T/S parameters
single V/C

Fs 52 Hz Re 3,3 Ohm Qms 3,13
Vas 9,5 liter Vas 0,33 Cuft Qes 0,8
Qts 0,64 Sd cm BL 6,59
