Mono Verstaerker 1 x 500 WRMS 500 WRMS 1OHM 370 WRMS
2OHM 200 WRMS 4OHM

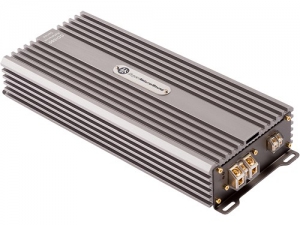

CCi500 is a compact and powerful mono amplifier with a
power of 550 Watts RMS 1 ohm load.

A popular and good power amplifier with high reliability.

An amplifier for both amateurs and professionals.



Built-in low-pass filter for subwoofers, variable between
35 and 250 Hz. Selectable 12 / 24 dB slope.

Built-in protection circuits shut down the amplifier in the
event of overloads

BASS BOOST adjustable 0 - +6 dB.

Damping factor 140

S/N ratio, A weighted: 92 dB

Remote bass level control is included

High level input with automatic start.

RMS output power 14,4 V



Specifications



Number of channels 1

Amplifier class D

Output power in 1 ohm 550 W RMS

Output power in 2 ohm 370 W RMS

Output power in 4 ohm 200 W RMS

Damping factor 140

S/N ratio, A-weighted 92 dB

Frequency range 10 Hz - 2500 Hz

Low level output No

Input sensitivity 1 - 4 V

Input impedance 22 kohm

Input impedance, high level 45 ohm

High pass filter Subsonic 30 Hz, ON/OFF

Low pass filter 35 - 250 Hz, 12 or 24 dB slope

Grand bass filter Bass boost 0- +6dB variable

Phase control for subwoofers 0 or 180 degrees switch

High level input with auto start Yes

Remote phase shift control No

Power consumption (idle) 0,8 A

Remote bass level control Yes

Power consumption (max) 80 A

Integrated fan Yes

Rec. power cable 2AWG / 33 mm2

Fuses Use external fuse 60 A

Dimension (W x D x H) 129 x 304 x 51 mm / 5,07 x 11,96 x 2

Weight 2,4 kg / 5,3 lb
