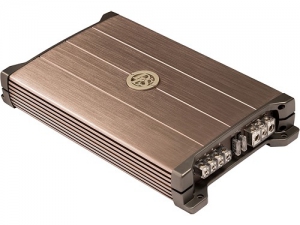

Performance RAW Monoblock Amplifier 1 x 450 Watt 450 WRMS
2OHM 260 WRMS 4OHM
P10 is a compact and powerful mono amplifier with peak
music power of 450 Watts 2 ohm load.

A popular and good raw power amplifier with high
reliability. Built-in low-pass filter for subwoofers,
variable between 50 and 200 Hz.

With the filter disconnected the amplifier works as a
fullrange amplifier.

Built-in protection circuits shut down the amplifier in the
event of overloads

BASS BOOST switch, +6 dB.

Remote bass level control is included

High level input with automatic start.

Cooling fan in the bottom plate.

RMS output power 14,4 V

Specifications

Number of channels 1

Amplifier class AB

Peak power 800 W

Output power in 2 ohm 450 W RMS

Output power in 4 ohm 260 W RMS

Damping factor 80

S/N ratio, A-weighted 95 dB

Frequency range 10 Hz - 30 kHz

Low level output No

Input sensitivity 0,25 - 5 V

Input impedance 22 kohm

Input impedance, high level 47 ohm

High pass filter yes

Low pass filter 50 - 500 Hz

Grand bass filter Bass boost OFF - +6dB

High level input with auto start Yes

Remote phase shift control No

Power consumption (idle) 0,5 A

Remote bass level control Yes

Power consumption (max) 50 A

Integrated fan Yes

Fuses 2 x 25 A

Dimension (W x D x H) 189 x 322 x 51 mm / 7,44 x 12,67 x 2

Weight 3 kg

EAN Bar code 7331644079101

DLS Nr. P10
