2 Kanal Verstaerker 2 x 170 Watt

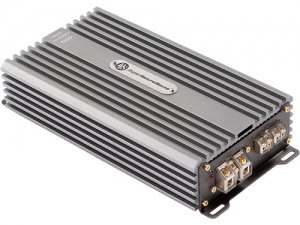

The new improved CCi2 is a small and powerful amplifier
with a RMS power output of 2 x 170 Watts. In 4 ohm mono
bridge-connection, it puts out all of 340 Watts.



Built-in low-pass filter for subwoofers, variable between
50 and 500 Hz.

The high-pass filter is also variable between 50 and 500 Hz.

Built-in protection circuits shut down the amplifier in the
event of overloads.

High level input with AUTO-start function makes it easier
to connect to factory installed head units.

Bass EQ variabel fron 0 till +6dB.

THD at 5W, 1 kHz: 0,02

Damping factor: 150

Signal to noise ratio, A-weighted: 110 dB

Specifications



Number of channels 2

Amplifier class AB

Mono bridge mode 4 ohm 340 Watt

Output power in 2 ohm 2 x 170 Watt

Output power in 4 ohm 2 x 110 Watt

Damping factor 150

S/N ratio, A-weighted 110 dB

Frequency range 10 Hz - 50 kHz

Input sensitivity 1 - 4 Volt

Input impedance 6 kohm

Input impedance, high level 45 ohm

High pass filter 50 - 500 Hz

Low pass filter 50 - 500 Hz

Grand bass filter Bass EQ +6dB 60 Hz

Low level output No

High level input with auto start Yes

Power consumption (idle) 0,5 A

Power consumption (max) 43 A

Integrated fan Yes

Fuses Use external fuse 40A

Dimension (W x D x H) 129 x 260 x 54 mm ( 5,1 x 10,2 x
2,1 )

Weight 1,87 kg
DLS Nr. CCi2
