4 Kanal Verstaerker 4 x 110 Watt

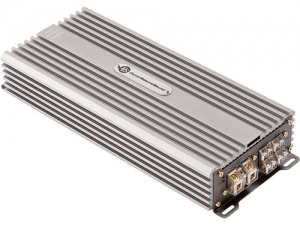

The new improved CCi44 is a small and powerful amplifier
with power output of 4 x 110 Watts RMS, and in mono
bridge-connection, it puts out all of 2 x 220 Watts. A good
sounding amplifier for both amateurs and professionells.

Built-in/switchable low pass and high pass filters.

Damping factor 300

Signal to noise ratio, A-weighted: 110 dB

THD at 5W, 1 kHz. 0,02

Built-in protection circuits shut down the amplifier in the
event of overloads.

Hi level input with Auto start

Use it for a front system and a subwoofer.

Specifications

Number of channels 4

Amplifier class AB

Output power in 2 ohm 4 x 110 Watt

Output power in 4 ohm 4 x 85 Watt

Mono bridge mode 4 ohm 2 x 220 Watt

Damping factor 300

S/N ratio, A-weighted 110 dB

Frequency range 10 Hz - 60 kHz

Input sensitivity 1 - 4 Volt

Input impedance 6 kohm

Input impedance, high level 45 ohm

High level input with auto start Yes

Remote bass level control No

Low level output No

Remote phase shift control No

Integrated fan Yes

Filters channel A + B HP 50 - 500 Hz, LP 50 - 500 Hz

Filters channel C + D HP 50 - 500 Hz, LP 50 - 500 Hz

Power consumption (idle) 0,7 A

Power consumption (max) 64 A

Fuses use external fuse 60A

Dimension (W x D x H) 129 x 320 x 54 mm (5,1 x 12,6 x
2,1 )

Weight 2,4 kg

DLS Nr. CCi44
